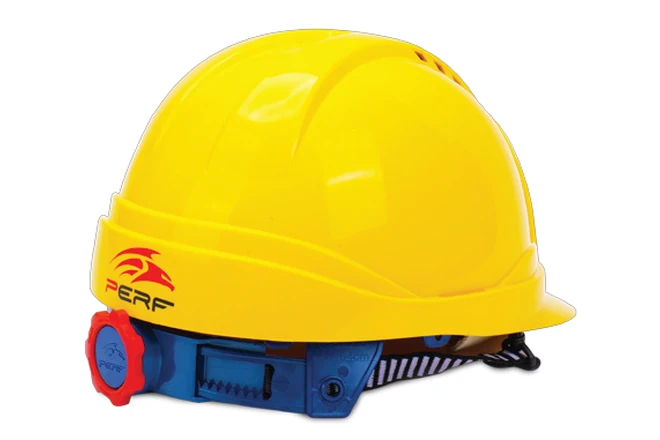

Y-Shield Orbit-R

Color:

STANDARD : EN 397:2012

Orbit-R is a premium rotary-ratchet system with a precision mechanism for ease of use, reliability & ergonomic enhancements. It has a 4 way balanced ratchet system operating mechanism, with patented design & unique alignment of gear locking arms for a well balanced force in both directions, enabling easy size adjusting movement of headband terminals on both sides. Further it features a 2-step assembly of housing for reliability and includes an ergonomic, industry first, unique design of 7-point operating lever for adjustment and wrap-around terminals. Additionally, it enhances the usability with a precise movement and unique pitch of each adjustment step. This adjustment system is available in unique, RAL5019 equivalent "Capri-blue" colour and coupled with 8-point supported and matching coloured webbings.

ADJUSTMENT

Rotary ratchet, 4 way balanced with 7-point operating lever and wrap-around terminals

SUSPENSION

8-point support for webbings, 25mm wide quality nylon webbings & stitch

STANDARD

IS 2925:1984, EN 397:2012, Z89.1-2014 Type-1 Class C, Z89.1-2014 Type-1 Class E

SHELL

Vented and non-vented

MATERIAL

High-impact HDPE

REF.

Vented YS1OR7B/G/W/Y/R, non-vented YS1OR7B/G/W/Y/R

FEATURES

Universal slots for accessories, high-quality sweatband, forestry & welding accessories and compatible sunshade visors

3D ADJUSTMENT

REAL-3D (patent pending) - automatically adjusts for varying head sizes in realtime and continuous movement. Common to all Y-Shield variants.
